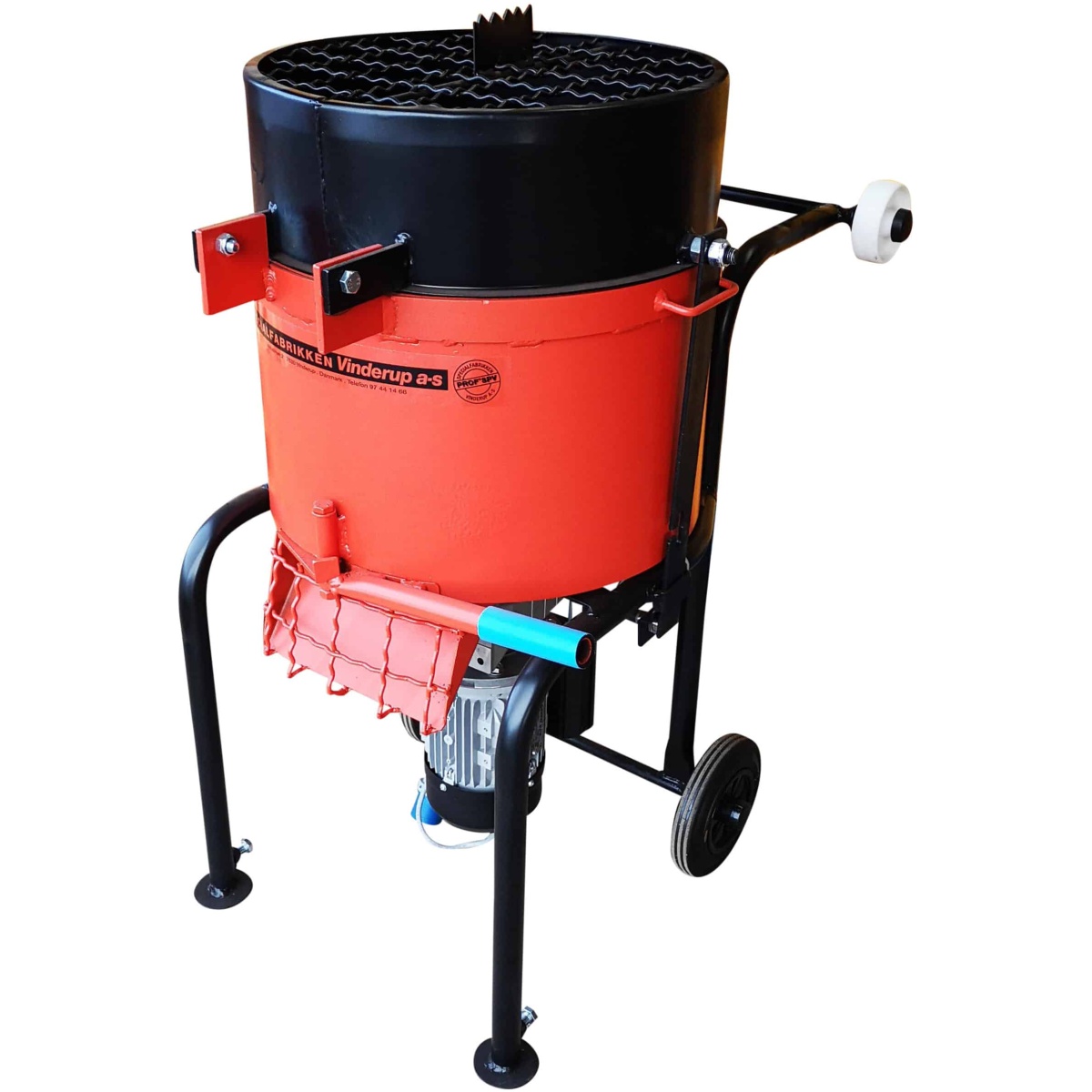

Model TE65

SKU: 1011 0107 Categories: ,

Danish Manuals

Manuals in English

Short description:

  • Handy mixer with a capacity of 57 liters (38 liters pre-mixed)
  • Equipped with loading wheels - can be loaded by one person
  • Two arms and one side scraper
  • Stepless adjustment of shovel blades makes cleaning easier
  • Strong plates in the bottom and tub

13.995,00 kr. Excl. VAT

SKU: 1011 0107 Categories: ,

Do you need help?

Call Henriette to order or if you have any questions...

P: 97 44 14 66
M: mail@specialfabrikken.dk

Over 50 years of experience
Fast Shipping
DK's best quality

Danskproduceret tvangsblander

Specialfabrikkens wide range: of cement mixers ensures that there is a strong and cost-effective mixer for all needs - large or small. TE65 is Specialfabrikken's smallest forced mixer for lighter tasks. The tub volume is 65 liters, and up to 38 liters of pre-mixed material can be blended per filling in this machine. It is small and handy, and it does not compromise on quality. TE65 is part of our practical handcart models - it can be easily loaded by one person using the high-mounted loading wheels. TE65 is made of strong plates in the tub and bottom, ensuring that the tub remains round, providing you with a durable and robust machine for many years. Additionally, it is equipped with a side scraper and two arms with shovel blades that can be adjusted steplessly, keeping the bottom clean and facilitating subsequent cleaning. Note! We stock a wide range of spare parts, ensuring that you can enjoy your forced mixer for many years. For example, it is possible to replace side scrapers, arms, or shovel blades individually, or you can replace the entire mixing mill at once as needed. We also stock gears, motors, wheels, lids, and numerous small components. All of this contributes to ensuring the long lifespan of our mixers. Note: Direct drive - no V-belts.

Safety:

In accordance with the Machinery Directive's requirements for safety and health, there is a grid cover installed over the tub and a protective grid under the discharge hatch. Additionally, there is motor protection to prevent unexpected/unintended starts.

Application:

The mixer is intended for mixing bagged materials in smaller batches, such as grout, dry mortar, and similar substances. Please also see 'Additional Information.'

Additional information

Capacity

57 L

Capacity

38 L

Weight

76 kg.

L = Length

784 mm.

W = Width

550 mm.

Height H1

1025 mm.

Height H2

595 mm.

Engine size

0,75 kW / 1 Hk

Single-phase 230V, 50Hz

16 A

Motor RPM

1400 min.

Gear Ratio

40:1

Mixer Mill RPM

35. per. minute

Plate Thickness, Bottom

5 mm.

Plate Thickness, Tub

3 mm.
